Consumer health awareness is continuously increasing, so more and more people are beginning to pay attention to the nutritional content and health benefits of food. Granola bars are loved by various groups of people because of their low fat, high nutrition, portability, satiety, and rich texture. Standardized production processes and professional complete production equipment transform each granola bar from raw nuts and grains into a fragrant finished product. Hanyuan's granola bar production line includes binder boiling, dry and wet material mixing, auxiliary ingredient cutting and shaping, and pillow-type packaging. The following content will provide an in-depth understanding of the complete manufacturing process of granola bars and the core supporting equipment.
一、Complete Granola Bar Manufacturing Process
1.Raw material pretreatment
The basic raw materials of granola bars include basic grains such as oats, corn flakes, quinoa, and black rice. These raw materials are first screened and purified to ensure hygiene and safety during product processing.
2.Syrup cooking

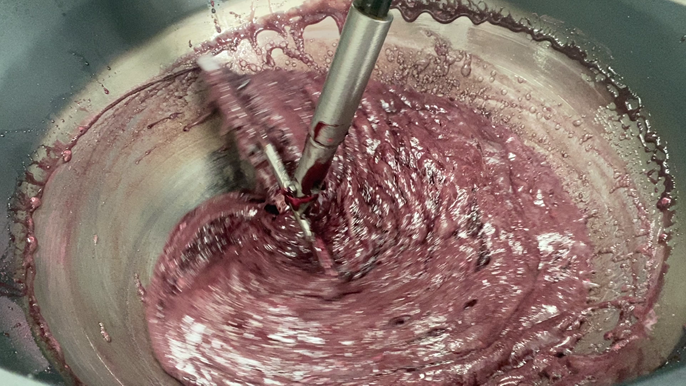

Syrup is the core binding material for granola bars, and it directly determines whether the grains can adhere and be shaped. In industrial granola bar production, the production system uses a sugar melting and holding system and adds the syrup according to a fixed, standardized ratio. This equipment is specifically designed for syrup cooking in granola bar production. It comes with an automatic stirring function, which prevents the syrup from burning at the bottom or being overcooked. At the same time, it precisely controls the syrup's consistency, thereby adapting to the production of granola bars with various recipes.
3.Dry and wet material mixing

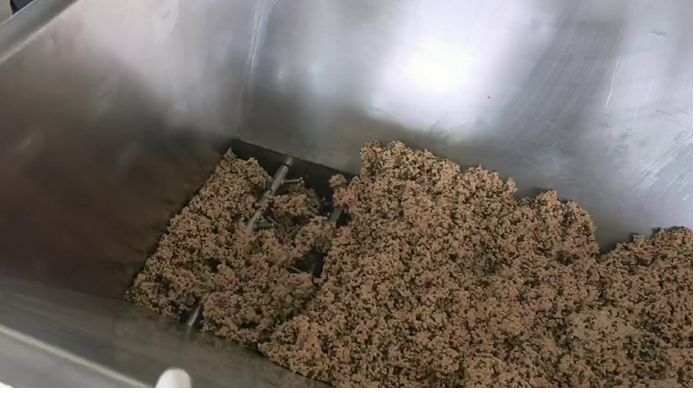

The operator puts all pre-processed dry and wet materials into a professional mixing blender. Once the equipment is started, it performs mixing operations with an adjustable speed and in an all-directional, no-dead-angle manner. The purpose of this process is to evenly coat every grain of cereal and every piece of nut and dried fruit with a thin layer of syrup. This step ensures the smooth progress of the subsequent rolling and forming process and meets the basic requirements for material shaping.
4.Auxiliary material cutting and shaping

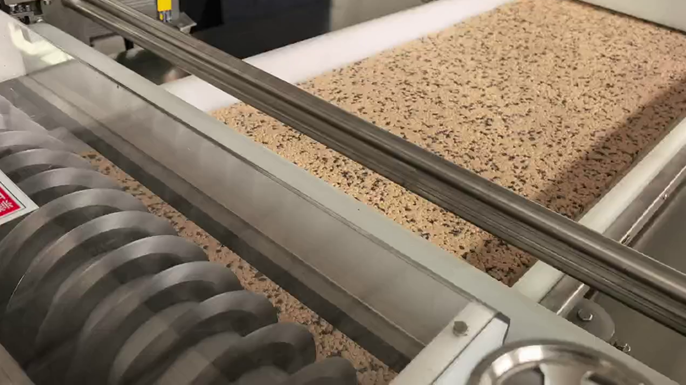

The mixed viscous mixture is transported by an automatic lifting device (a bucket elevator) into a dedicated cutting and forming machine for granola bars. The machine cuts the granola bars into standardized products of uniform size according to the preset cutting shape, in order to meet output requirements. The production line uses a three-roller auxiliary hopper for adding ingredients, which can press granola bars into either a rectangular cross-section or a U-shaped cross-section. The freshly produced granola bars are relatively soft in texture and cannot be packaged directly; therefore, they need to be cooled and set. The production line uses multiple fans for cooling, which effectively prevents deformation of the finished product and does not damage the texture of the ingredients throughout the entire cooling process.
5.After sealed packaging, products undergo quality inspection and are then sent into storage.

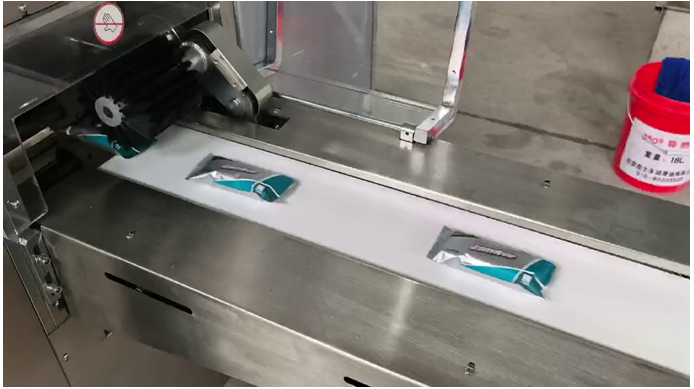

The cooled and set granola bars that have passed quality standards are conveyed through a cornering machine into a fully automatic packaging machine to complete further processing and packaging. This equipment accelerates the distribution of materials and quickly organizes and arranges the products. The entire process adopts a fully automatic feeding pillow-type packaging method.

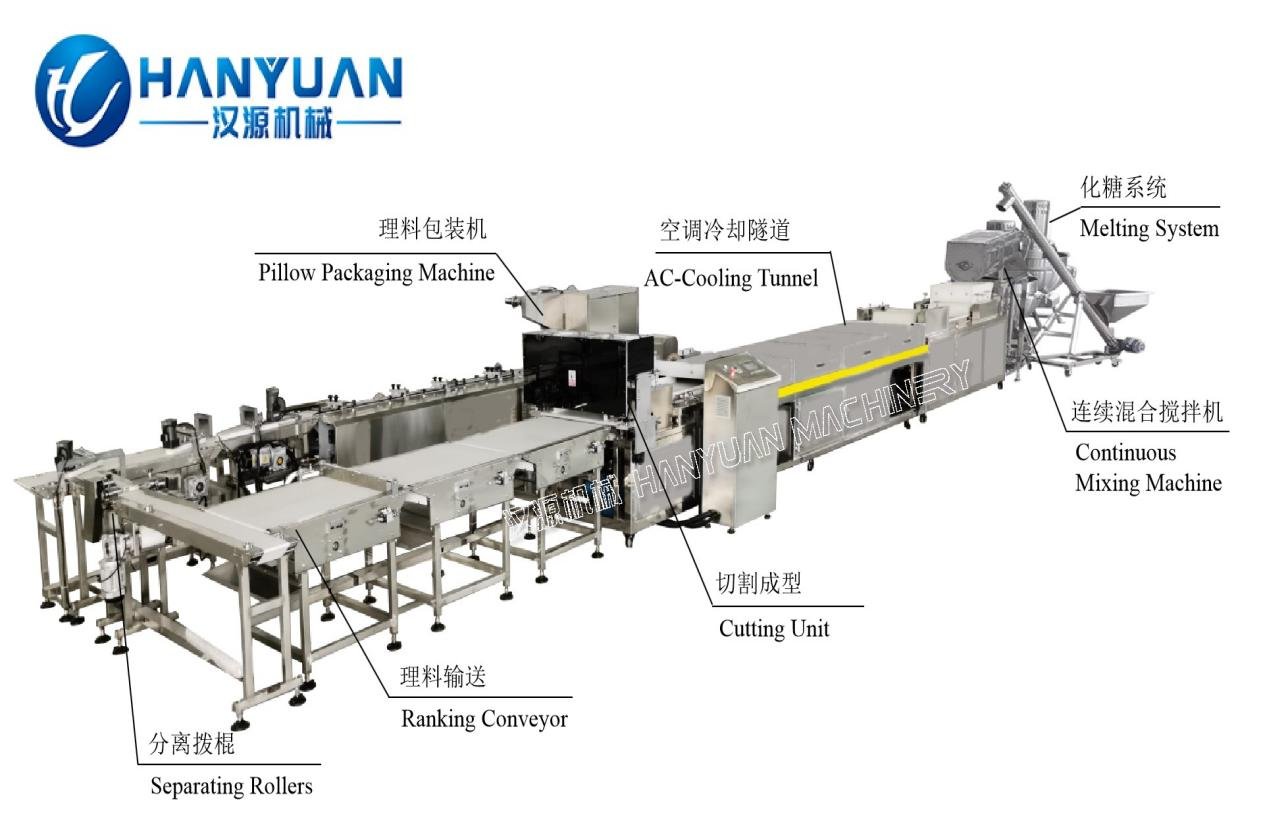

二、Core Equipment of the Granola Bar Production Line
1.Sugar Cooking Kettle ：The sugar cooking kettle is a piece of equipment specifically used to cook the binding syrup for granola bars. It can precisely control the temperature and is equipped with an automatic stirring function, thereby preventing the syrup from burning at the bottom or caramelizing. This equipment ensures the stability of the syrup's consistency and viscosity, making it suitable for various production recipes.
2.Mixer：The mixer is a piece of equipment that features a large-capacity design, possesses all-directional no-dead-angle mixing capability, and has an adjustable rotation speed. This equipment can quickly and evenly mix grains, nuts, dried fruits, and syrup, preventing issues such as material clumping, stratification, or uneven wet-dry distribution. The mixer delivers good mixing performance and can be connected to upstream and downstream processes, making it suitable for continuous large-scale production.
3.Cutting and Forming Machine :The cutting and forming machine is the core equipment of the production line. It is capable of performing operations such as material spreading, flattening, slitting, and cutting into pieces. This equipment allows operators to adjust the thickness of the material and the size of the finished product. Through automatic cutting and forming, the equipment achieves high dimensional accuracy of the finished product and low production waste, while significantly saving labor costs.
4.Fully Automatic Feeding Packaging Machine :The fully automatic feeding packaging machine is a device that can automatically complete independent sealed packaging, coding, and cutting of granola bars. This equipment has excellent sealing performance and can achieve neat and attractive packaging. When used in conjunction with auxiliary equipment such as a feeding conveyor, this packaging machine ensures the efficiency of large-scale production.
The market momentum in the healthy snack sector remains strong, and the granola bar leisure food market offers enormous business opportunities. Choosing the right production equipment is choosing a shortcut to profitability. The fully automatic granola bar production line manufactured by Hanyuan Food Machinery Co., Ltd. lays a solid foundation for production through reliable quality, lowers the barrier to production through intelligent technology, expands profit channels through diverse adaptability, and protects customers' long-term operations through considerate after-sales service.
